Overview

Towable Dust Suppression Bowsers - MistCannon Rover

WORLDWIDE

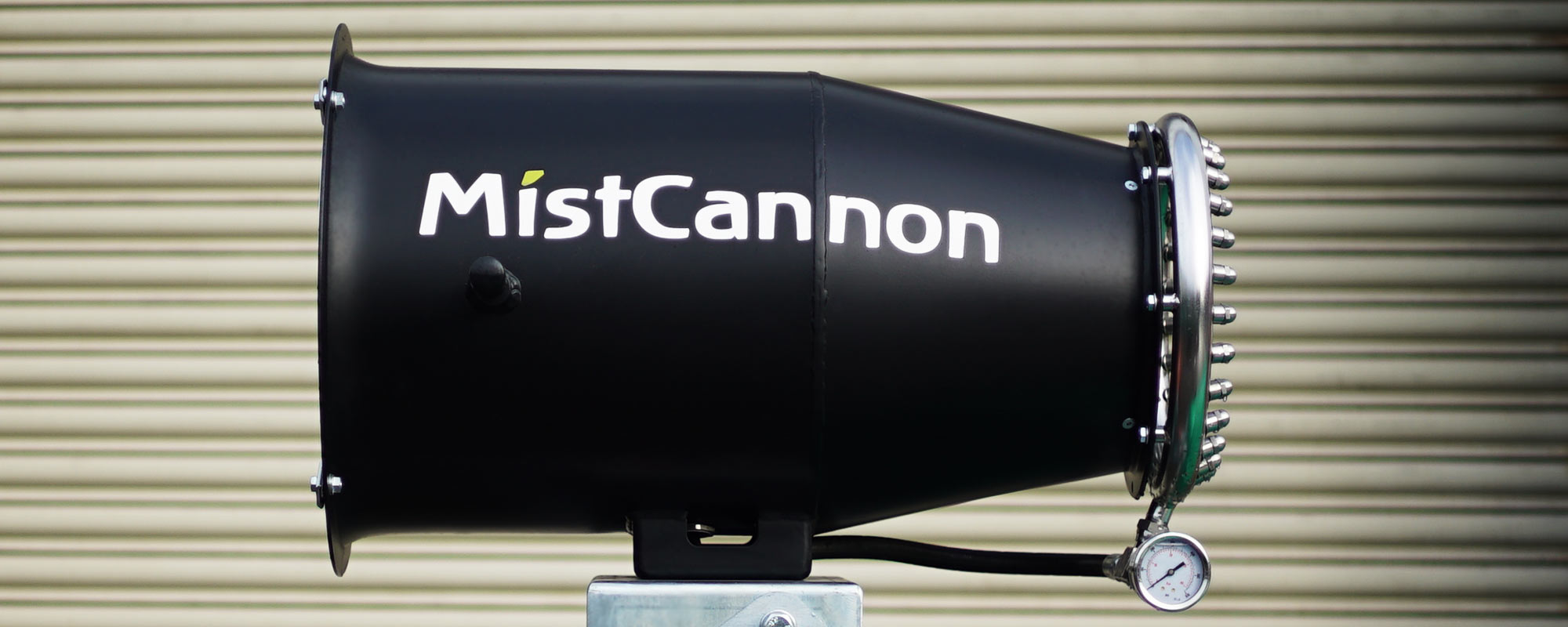

MistCannon Rover is a very reliable, towable dust suppression bowser. Corgin have a large fleet of these bowsers available for immediate hire throughout the UK. Originally developed in Scandinavia, and with characteristically superior build quality and robustness, MistCannons (otherwise known as fog cannons) are used globally – from Europe and North America, to Australasia, Asia and Africa.

POWERFUL AND ROBUST

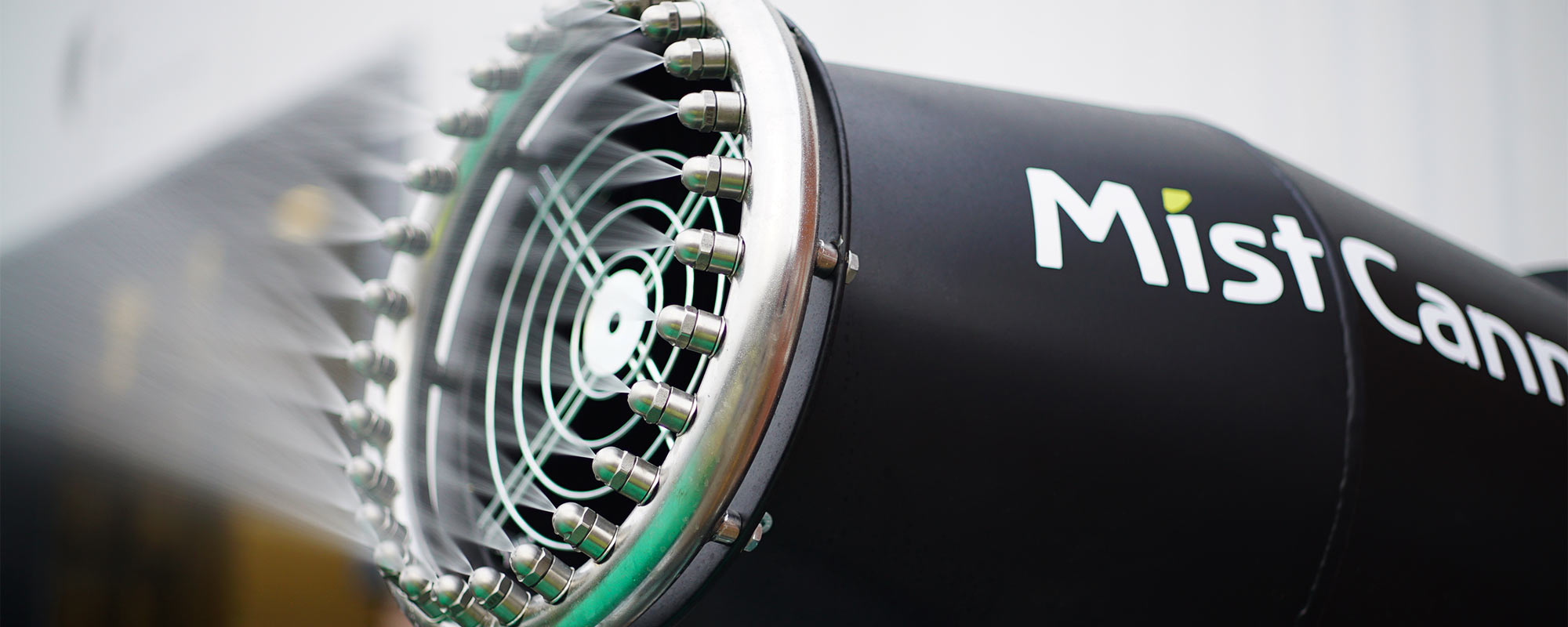

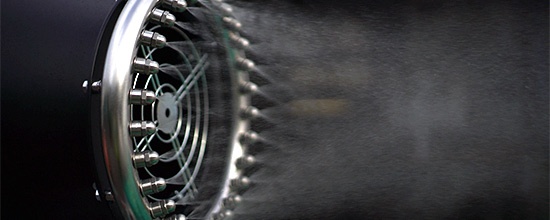

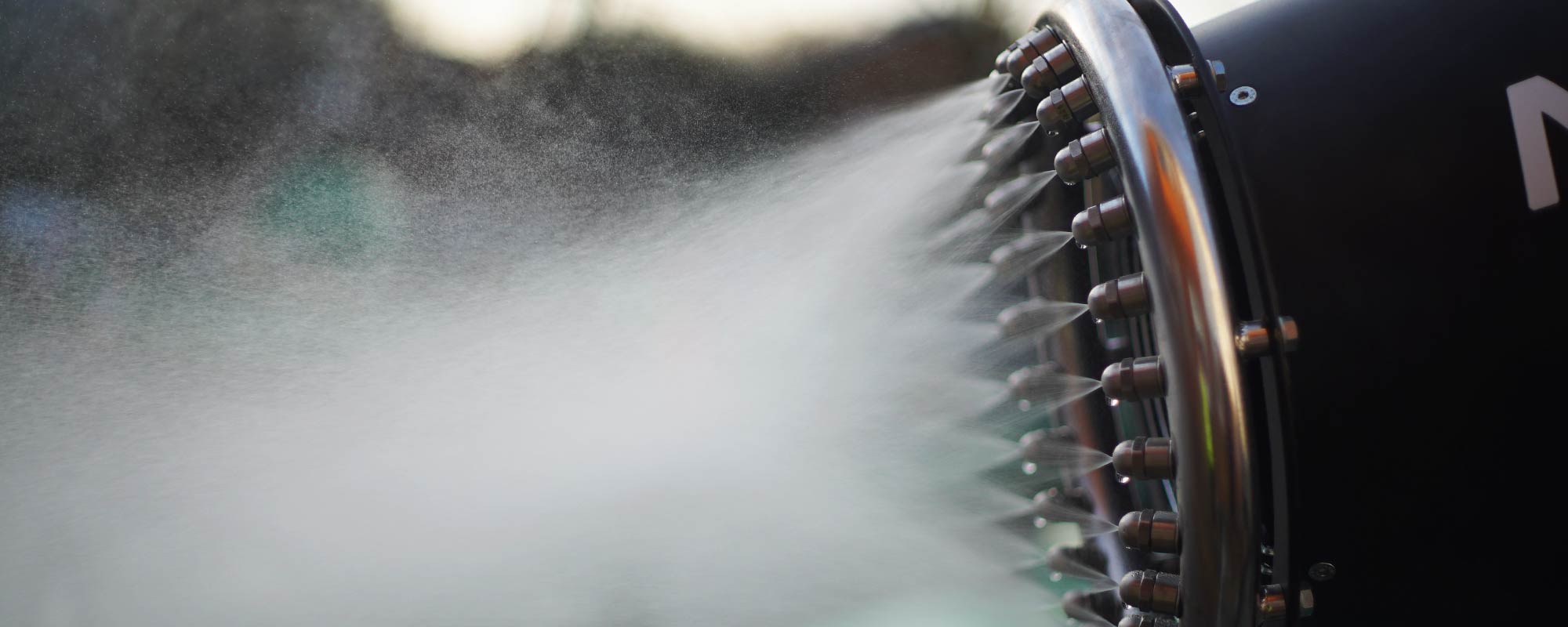

MistCannons project a giant plume of finely-atomised water droplets into the air to suppress dust effectively before it disperses into the environment. These robust machines cope easily with the harshest of conditions!

MASSIVE THROW

The MistCannon Rover can propel mist up to 30m and can swivel by 270°, giving a maximum ground coverage of up to 2,800m² with a single sweep.  A larger size cannon is also available for purchase only, which has a throw of up to 40m, covering up to 5,000m².

MOBILE

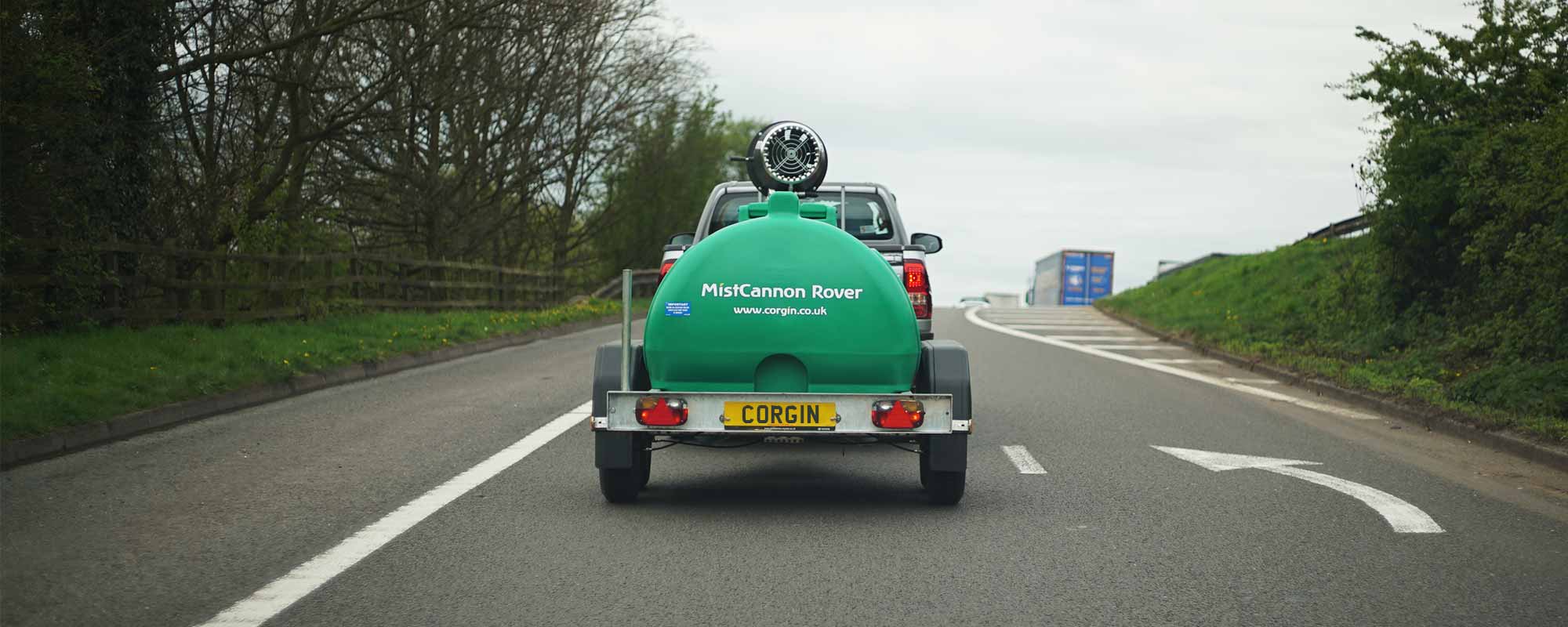

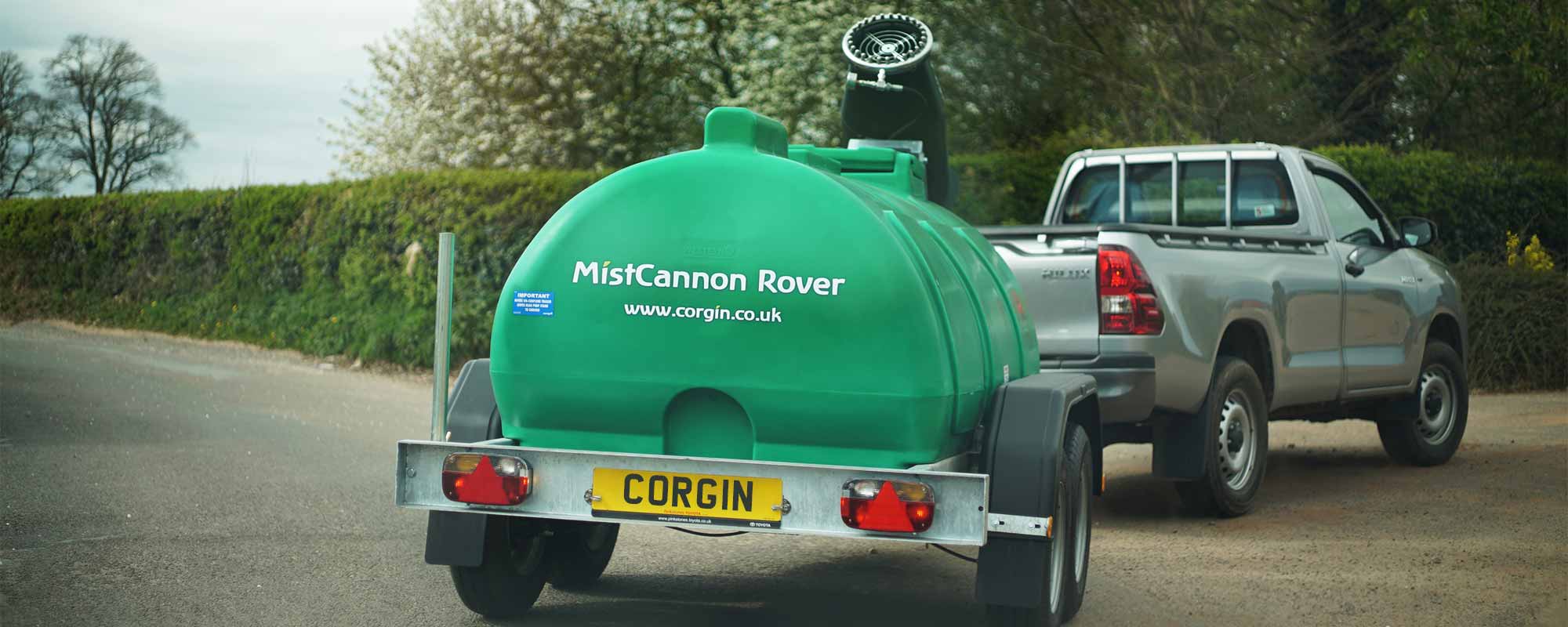

The Rover consists of a road towable, trailer mounted dust suppression water bowser unit, with a new slim design, ultra-efficient MistCannon mounted on the front.  The trailer is to a highway specification making the unit very easy to deploy and portable while on site.  The bowser allows the unit to be used independently of a fixed water supply, giving continuous spraying time of 90 minutes (dropping to 75 minutes for the larger cannon).

POWER SUPPLY

You will need to bring a 3 phase, 400V power supply to the MistCannon Rover.  Corgin can quote for the hire of an adequately sized generator if required.

REMOTE CONTROL

With Health & Safety Regulations tightening up, we can now offer a remote-control option, meaning that the MistCannon can be controlled from a safe distance – such as from inside a vehicle cab, office or control room.

WIDE RANGE OF USES

Since Corgin introduced MistCannons to the UK market in 2012, their popularity has mushroomed as more and more clients prove their worth. As well as selling them for use all over the UK, we have exported MistCannons to places as diverse as Ireland, Denmark and even Mozambique! MistCannons can handle all manner of dust types, from coarse wood chip to ultra-fine incinerator ash.  In addition to dust suppression, MistCannons can also be used for large-scale spraying and misting of disinfectants for surface sanitising.

HIRE FLEET

Corgin have a large hire fleet of Rover towable dust suppression bowsers. They are available for both long and short term hire, invaluable for temporary dust suppression or emergency needs.

Features & Benefits

Features
Benefits
Throw of up to 40m and electrical oscillation of up to 270° Massive coverage of up to 5,000m² from one location

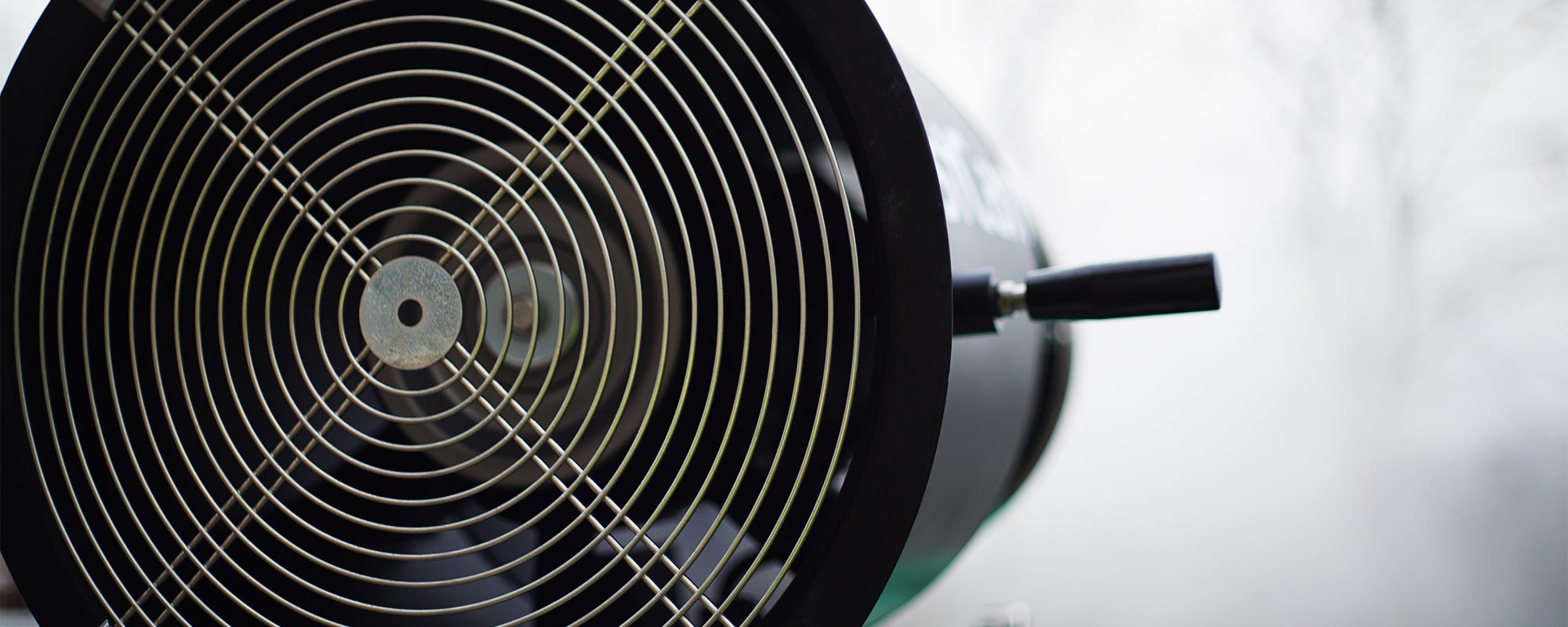

Powerful turbofan and booster pump For creating and propelling the fine mist plume
Ultra-efficient water output Saves water; longer spray time without bowser refill

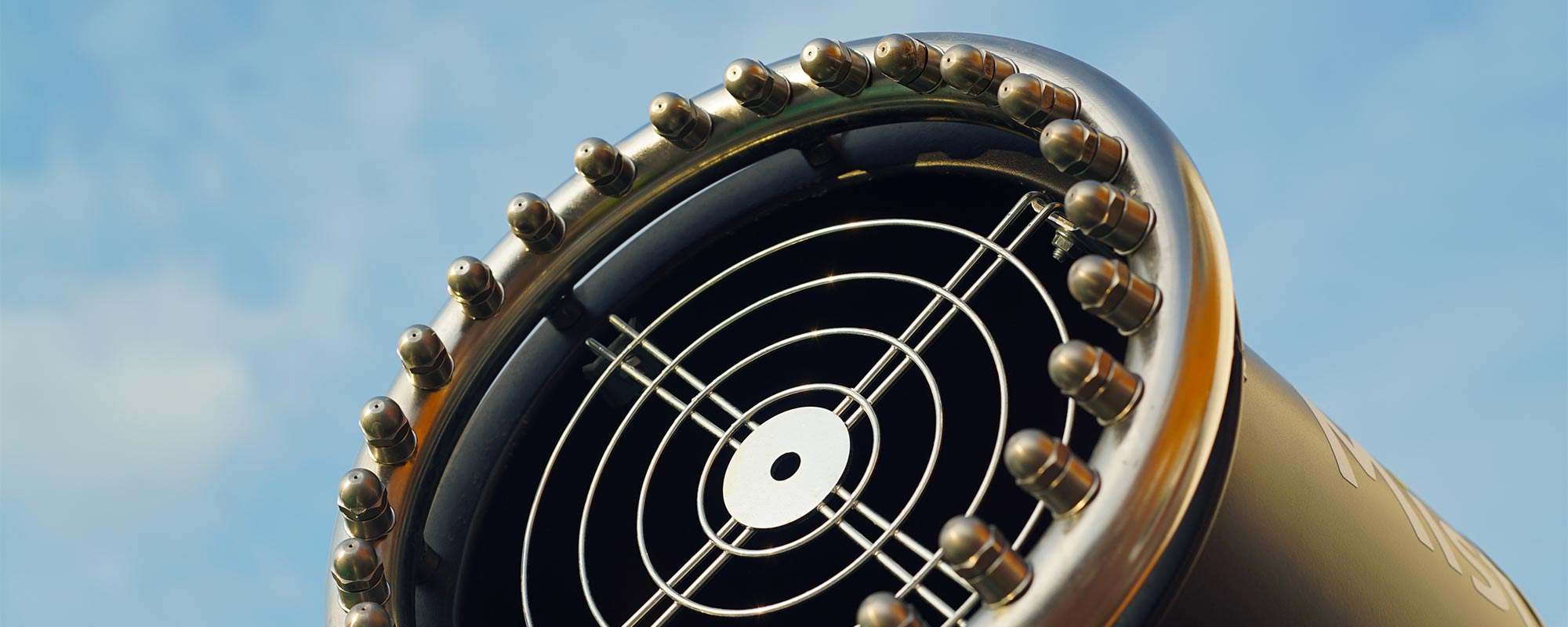

Stainless steel nozzles For durability
Hand-held remote control Safe operation from a distance
Highway tow trailer with water bowser For rapid deployment and profitability on sites where no water supply is readily available
Water filtration system To help protect the pump & reduce incidence of nozzle blocking

Videos

Specification

Model (throw/bowser size)

Rover 30/2000

Rover 40/2000

Availability

Hire or Purchase

Hire or Purchase

Fan

3 kW

5.5 kW

Pump

2.2 kW

2.2 kW

Total kW

6 kW

8 kW

Nozzles

27

33

Flow

21 l/m

26 l/m

Working pressure

10 bar

10 bar

Power connection (400V, 50Hz)

16 A

32 A

Bowser size

2000 litres

2000 litres

Weight (unladen)

675 kg

715 kg

Vertical tilt

-20 to +20°

-20 to +20°

Oscillation

45-315°

45-315°

Maximum throw

30 m

40 m

Length

3.92 m

3.92 m

Width

1.85 m

1.85 m

Height

2.1 m

2.1 m



Optional Extras

Remote control; automatic electric oscillation

Model (throw/bowser size)

Rover 30/2000

Availability

Hire or Purchase

Fan

3 kW

Pump

2.2 kW

Total kW

6 kW

Nozzles

27

Flow

21 l/m

Working pressure

10 bar

Power connection (400V, 50Hz)

16 A

Bowser Size

2000 litres

Weight (unladen)

675 kg

Vertical tilt

-20 to +45°

Oscillation

45-315°

Maximum throw

30 m

Length

3.92 m

Width

1.85 m

Height

2.1 m

Model (throw/bowser size)

Rover 40/2000

Availability

Purchase

Fan

5.5 kW

Pump

2.2 kW

Total kW

8 kW

Nozzles

33

Flow

26 l/m

Working pressure

10 bar

Power connection (400V, 50Hz)

32 A

Bowser size

2000 litres

Weight (unladen)

715 kg

Vertical height

-20 to +45°

Oscillation

45-315°

Maximum throw

40 m

Length

3.92 m

Width

1.85 m

Height

2.1 m



Optional Extras

Remote control; automatic electric oscillation

Applications

Where are MistCannons used?

Why are they selected?



Quarries

Remote control operation

Mines

Lower noise emissions

Ports

Low water usage

Steelworks

Rapid deployment from hire fleet

Waste Handling Facilities

Ease of mobility

Demolition Sites

Cooling and evaporation

Construction Sites



Bulk Materials Handling



Aggregate Handling
