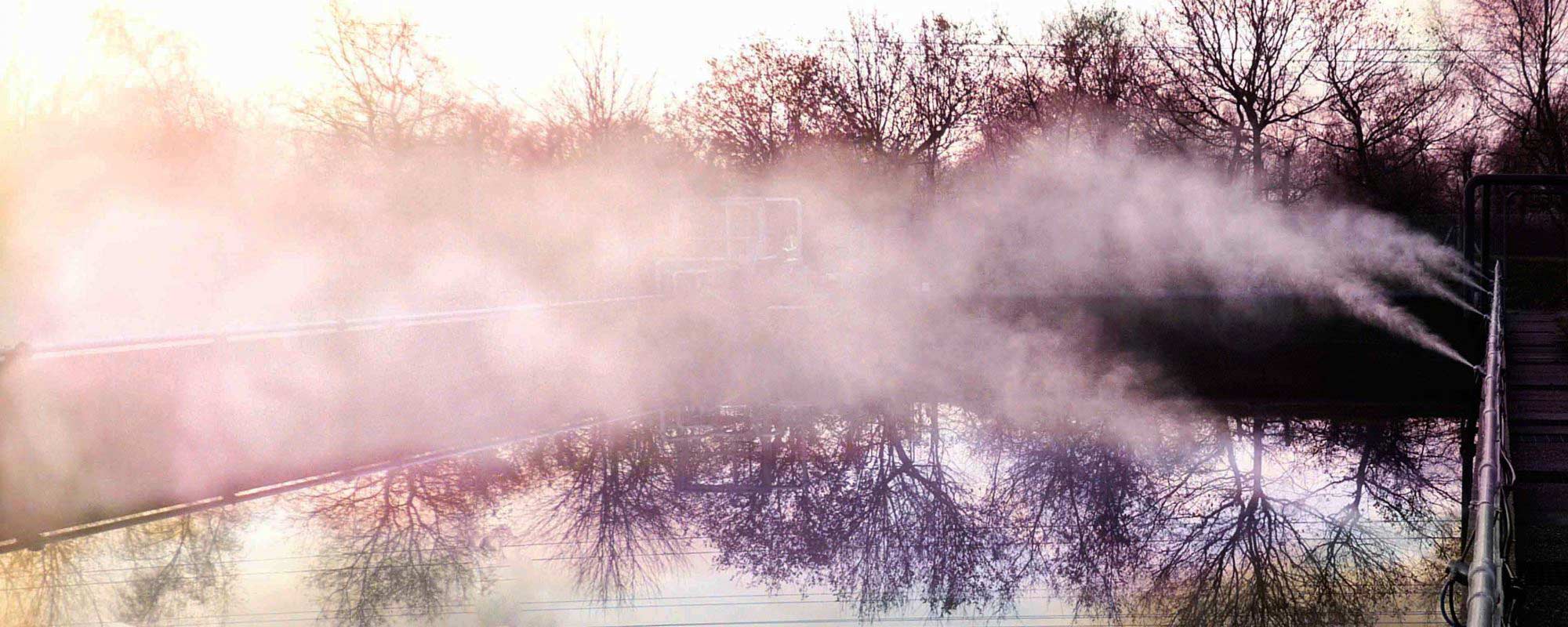

AtomisterAiro utilises a compressed air supply to produce an ultra-fine mist spray which combats both odour and dust. These systems are perfect for both highly targeted treatment and treatment of general airspace, whether indoors or outdoors.

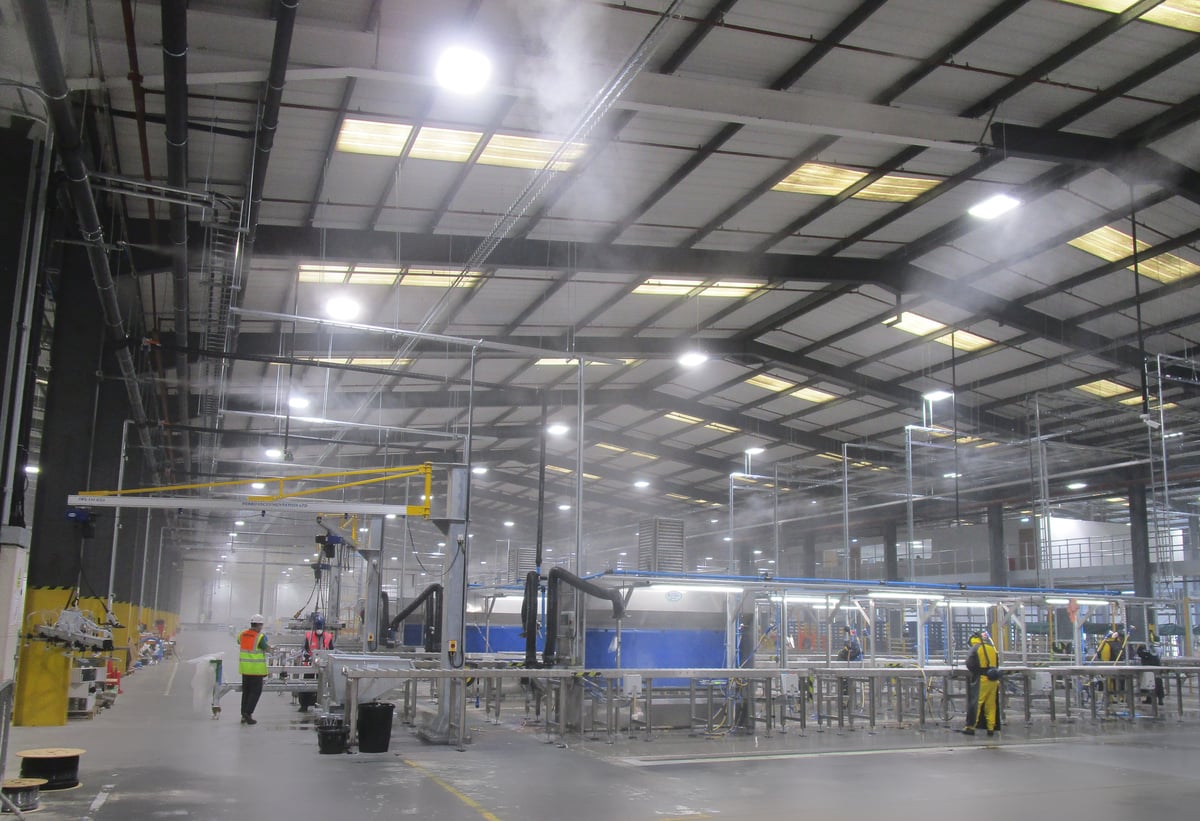

AtomisterAiro systems can be configured to mist so finely that there is no wetting of floors or equipment, meaning far less risk of detriment to personnel and plant. This is particularly the case when controlling odours and ultrafine dust in the ambient air. However, in certain dust control situations, very light and controlled dampening may be a desirable feature, and the system can be adjusted to allow this. Your specific requirements will be taken into account by our competent advisers.

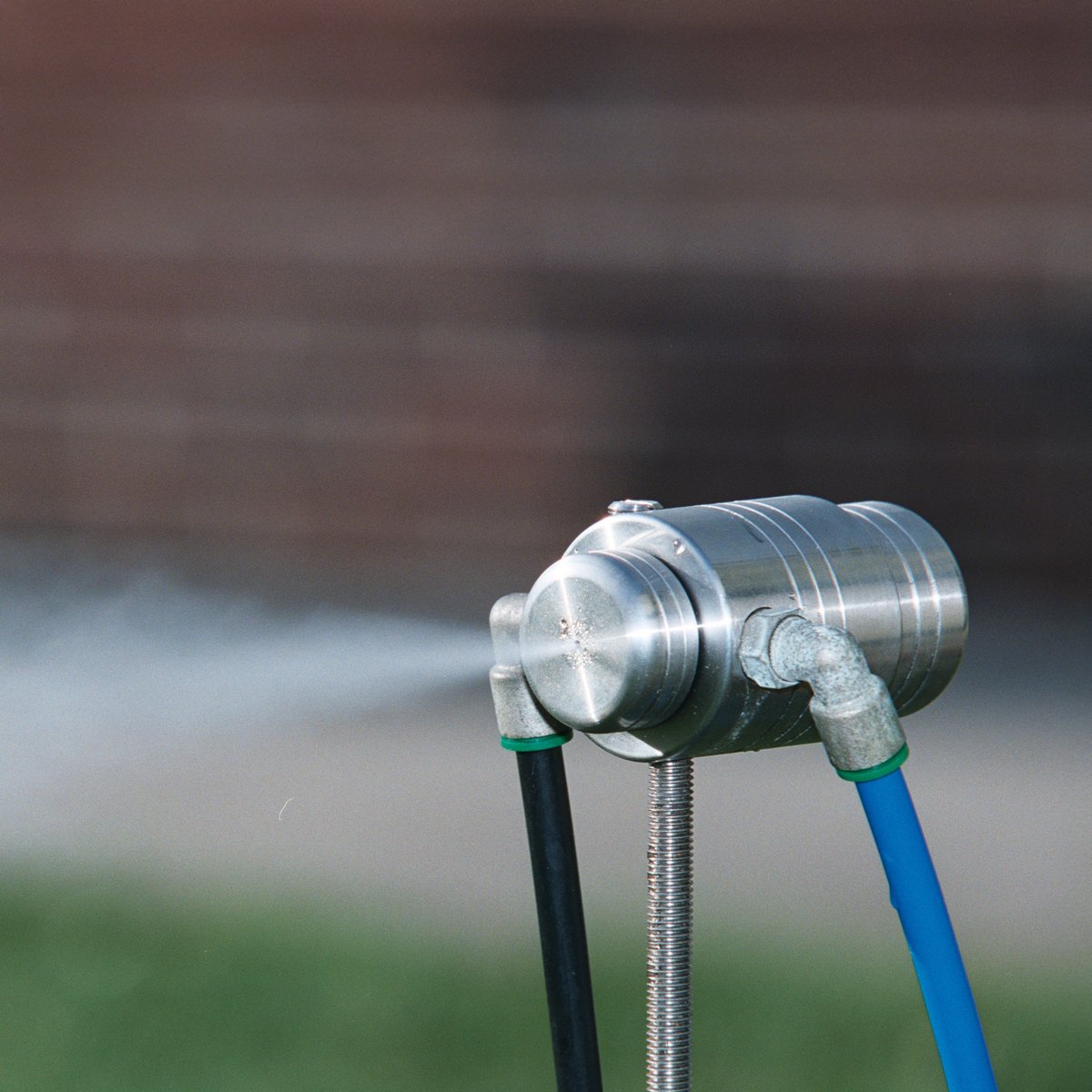

This ultra-fine mist means that the system uses up to 90% less water than traditional odour suppression systems!
The system is comprised of
Thanks to the modular design of the system, it is possible to extend or alter the system configuration and the quantity and location of atomisers, should your requirements change over time.

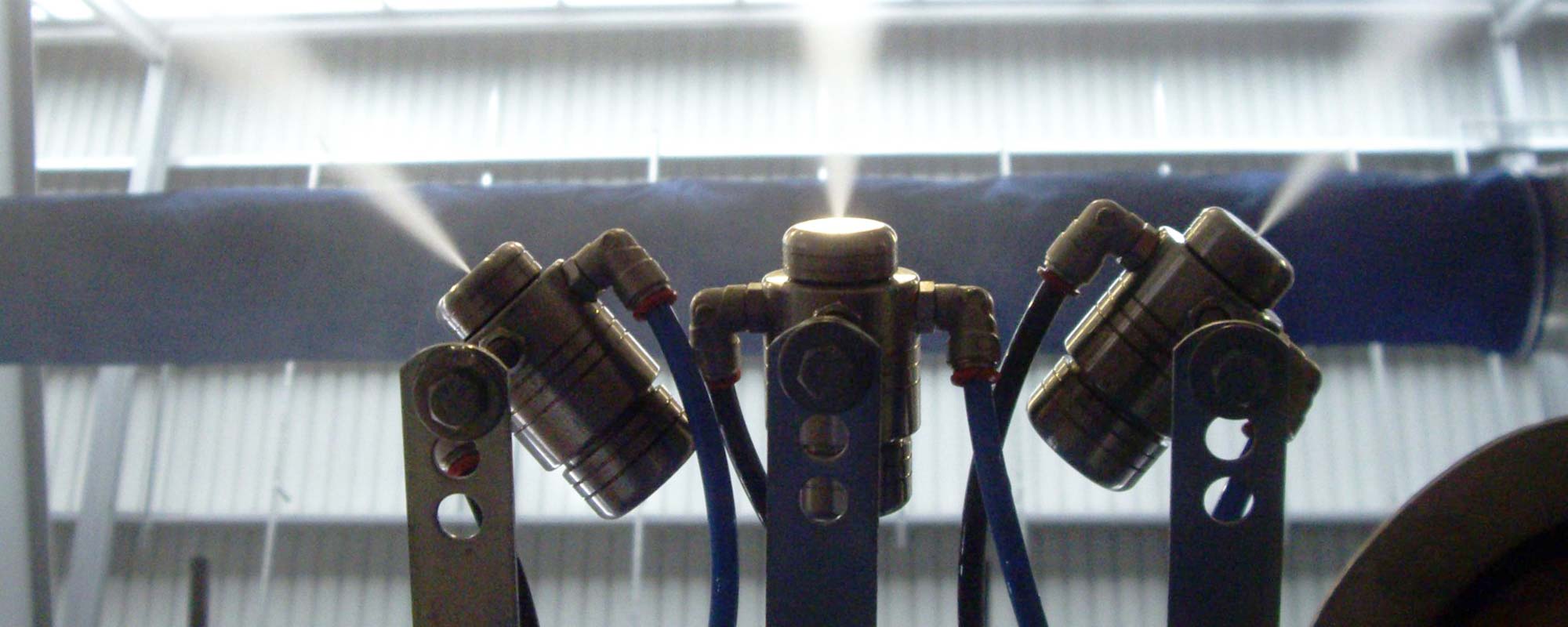

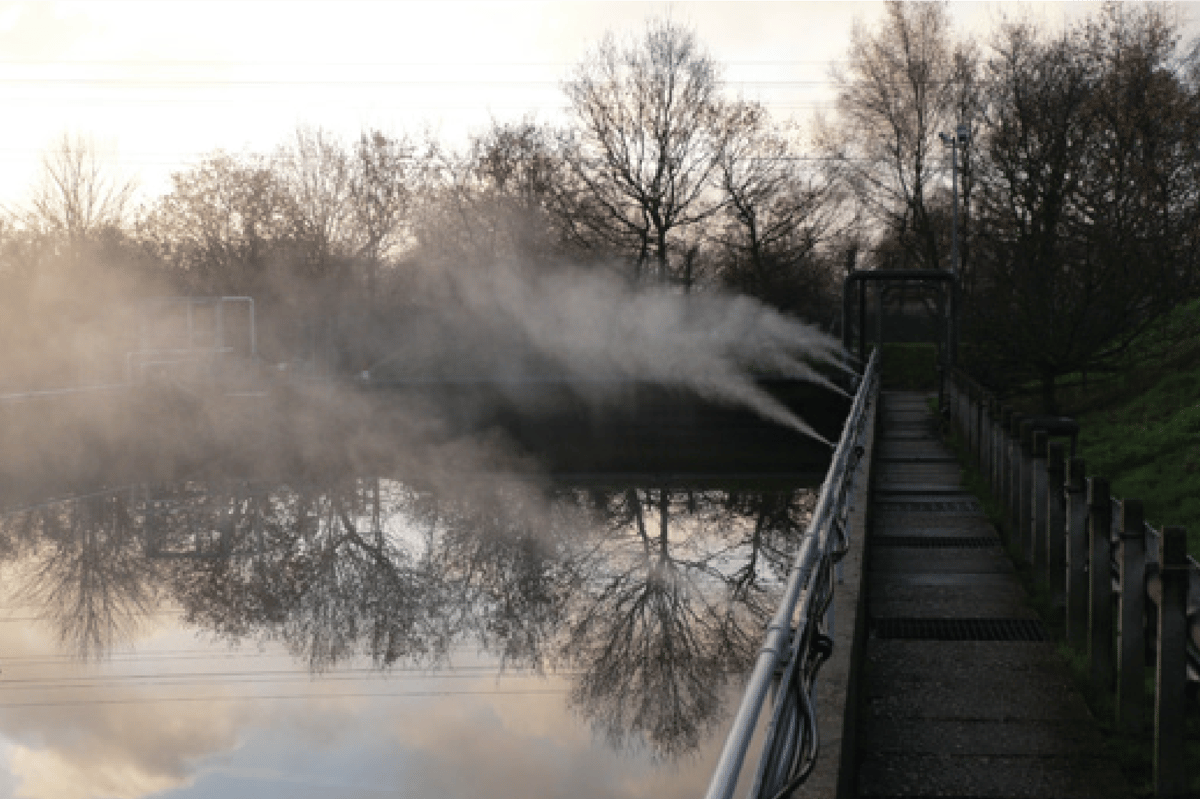

Because each atomiser is independently adjustable in terms of both the direction and intensity of its spray, treatment can be matched precisely to the condition of each area.
Various options and functions are available using cutting-edge technology to enhance performance and protect the system. Examples are automatic timer control, thermostatic purge, wind vane control and control box heating.
All of our AtomisterAiro systems come with a free
Features |
Benefits |
Strong, lockable mechanical control box |
For security and protection against dust ingress |
Fully pumped water supply with pressure regulation and filtration |
For reliable operation and protection of components |
Air pressure regulation |
For consistent operation |

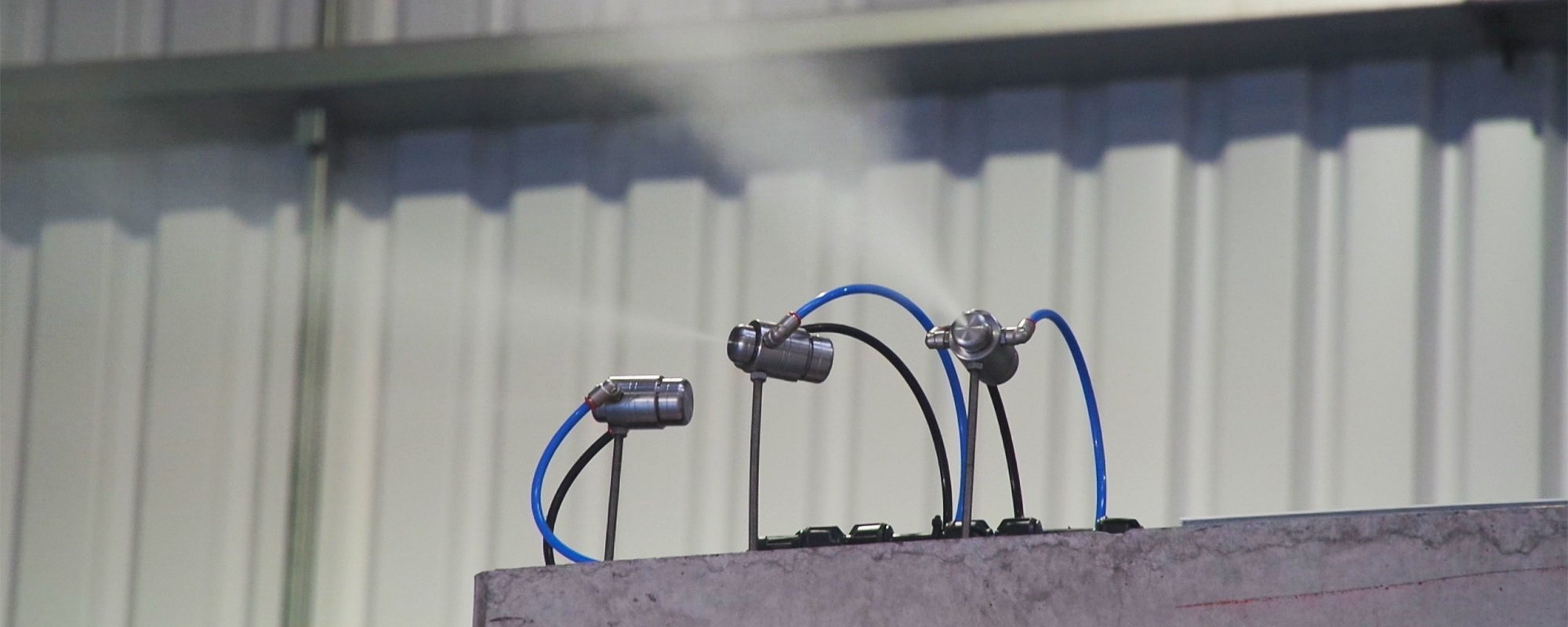

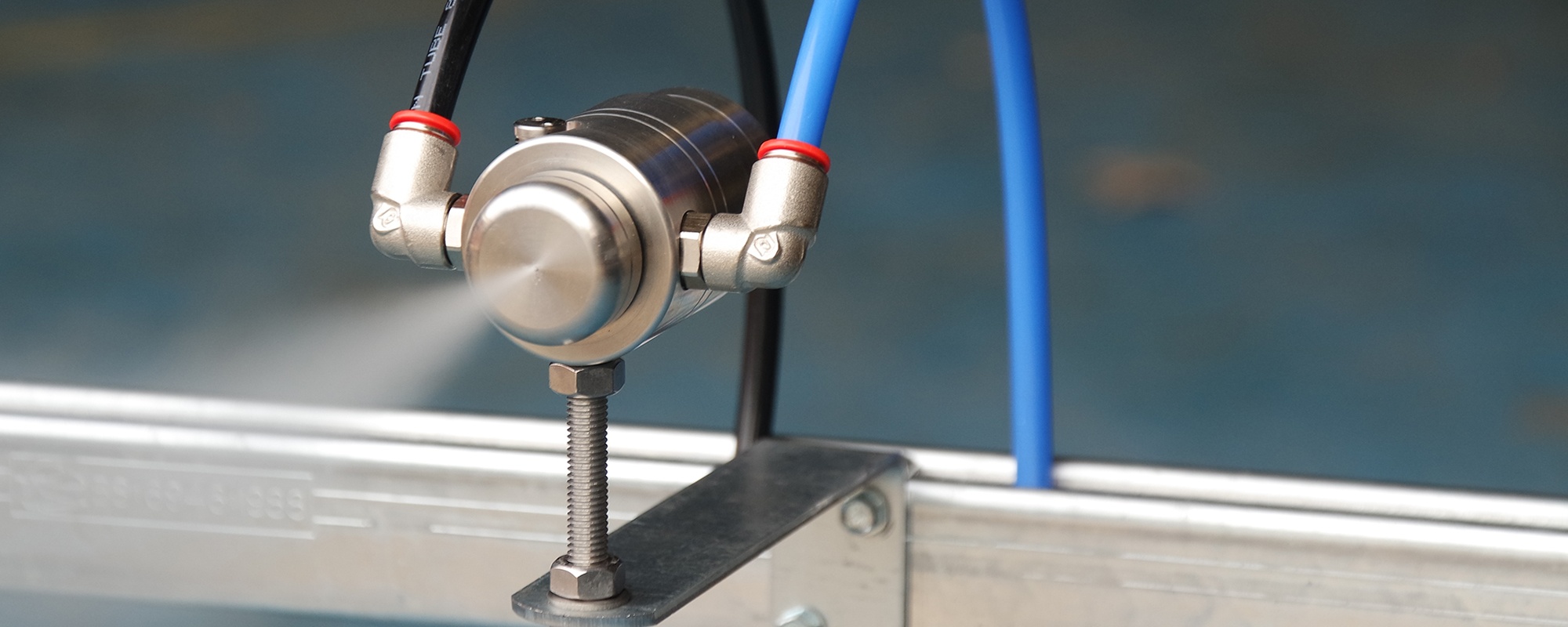

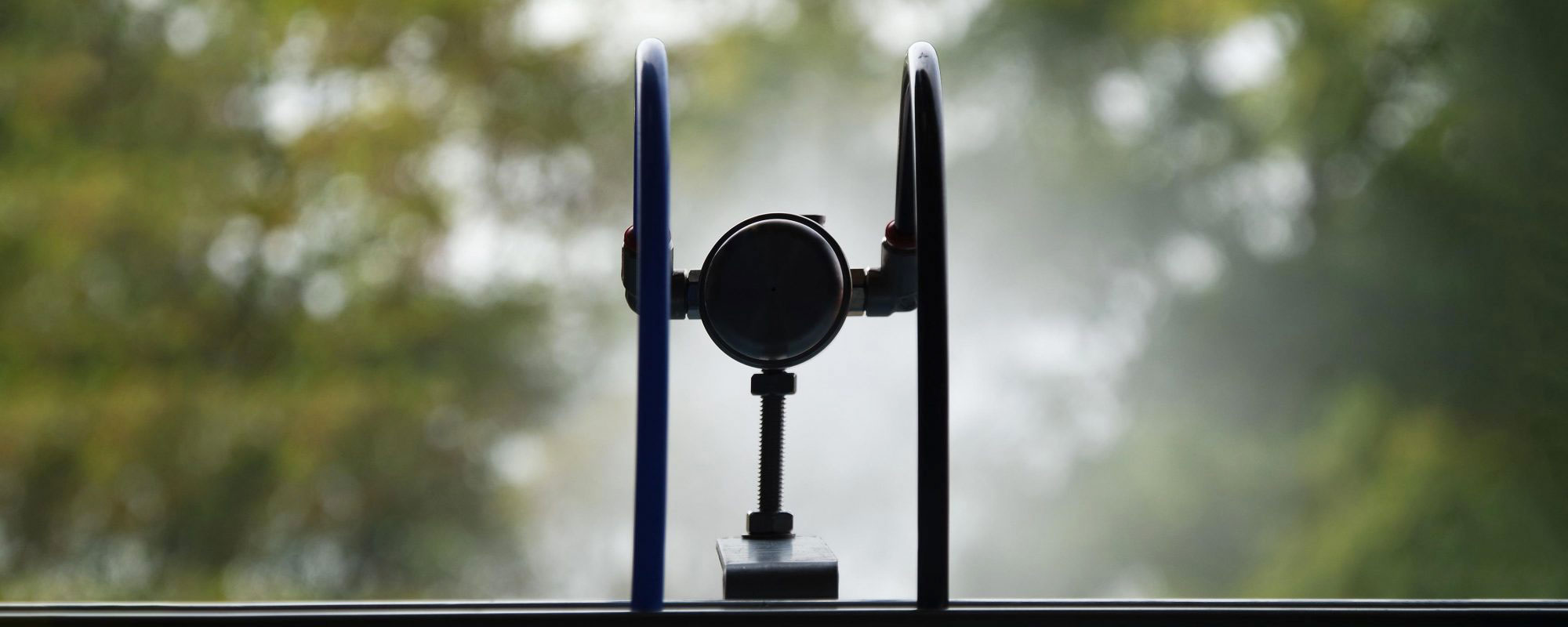

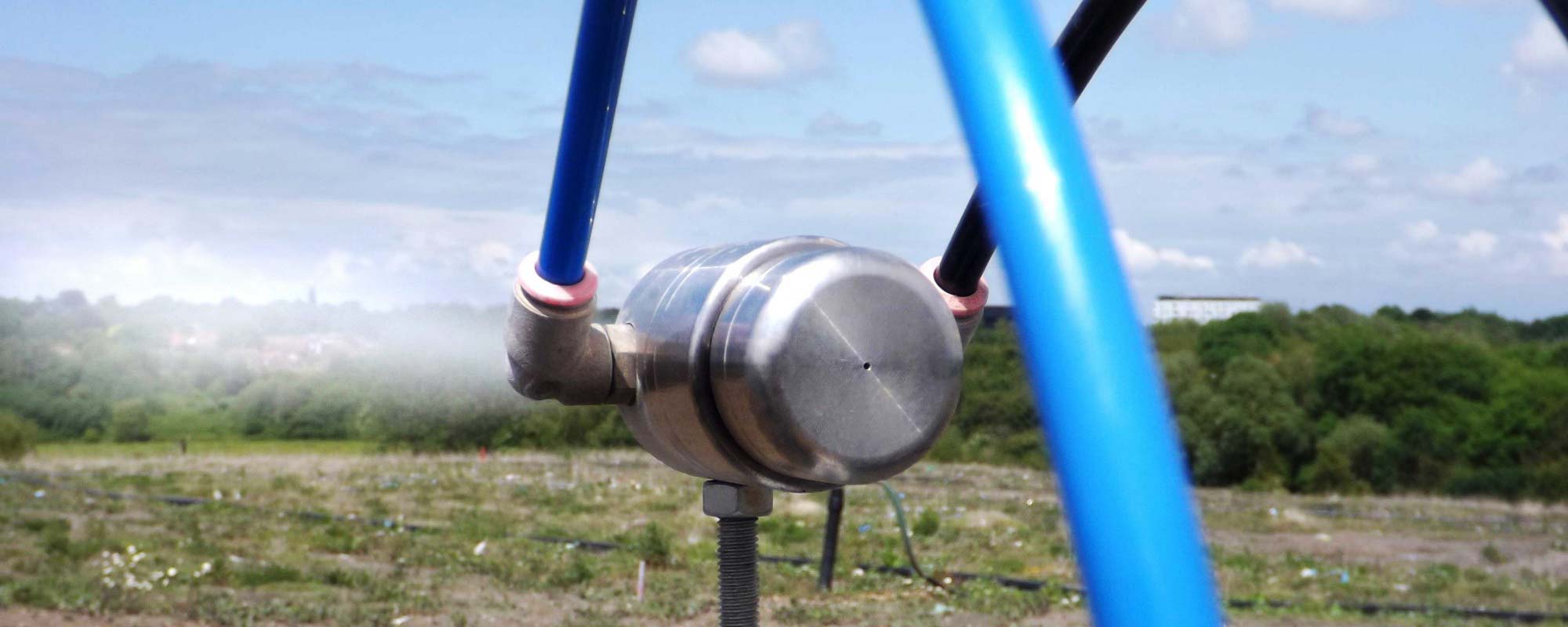

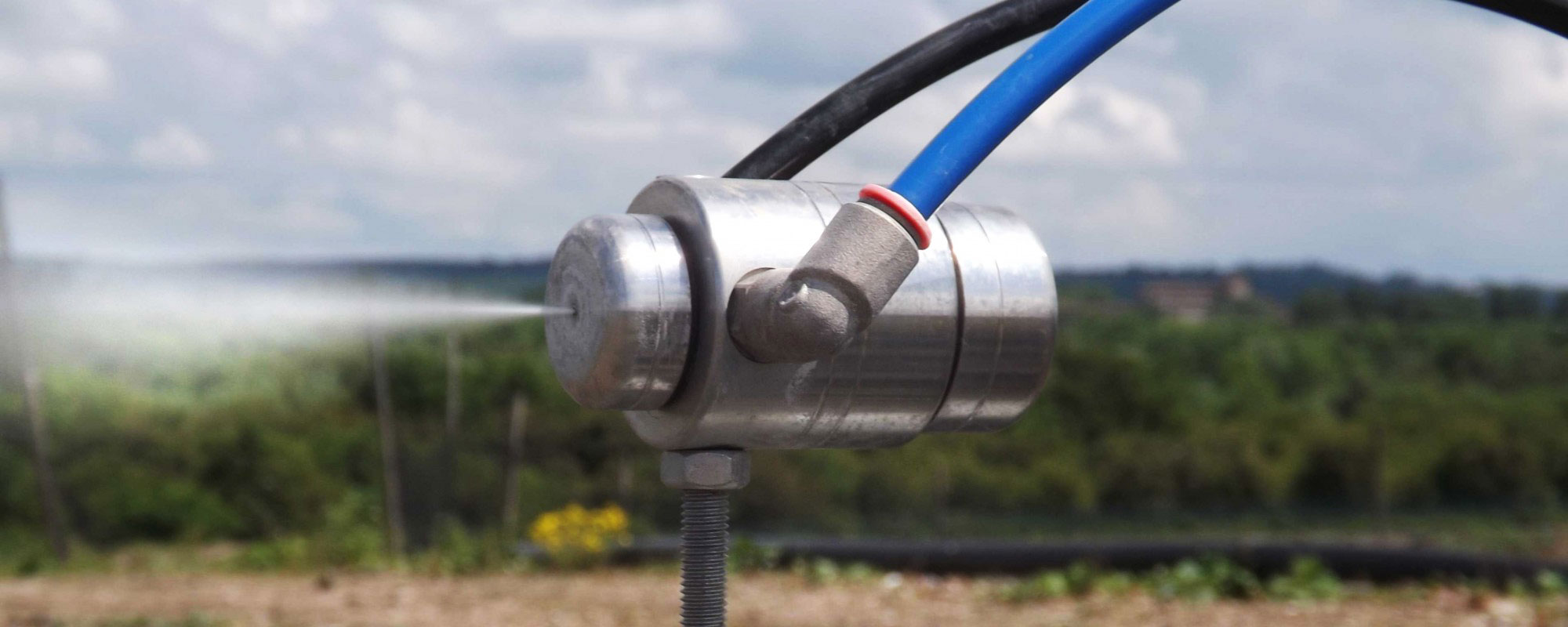

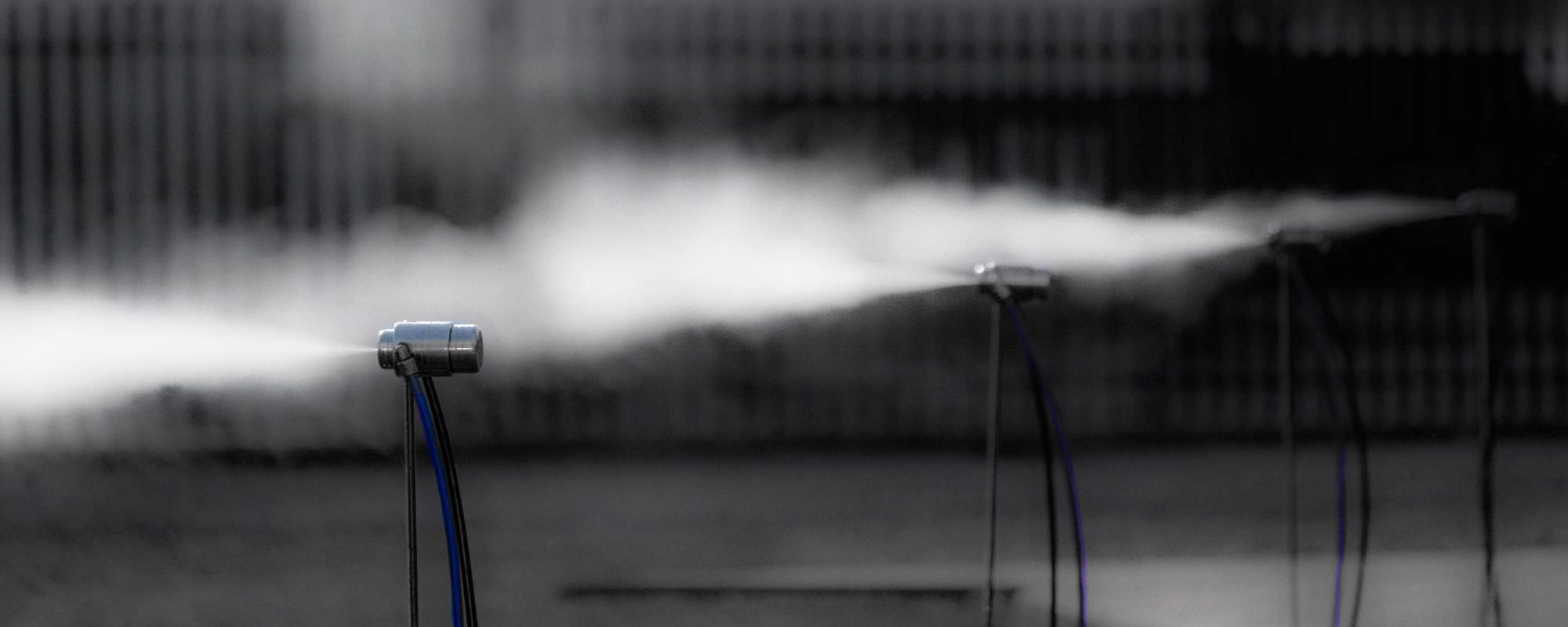

Individually regulated, interchangeable, 316 stainless steel air-atomisers with self-cleaning features and anti-drip valve |
Highly versatile; exceptionally durable; low maintenance |

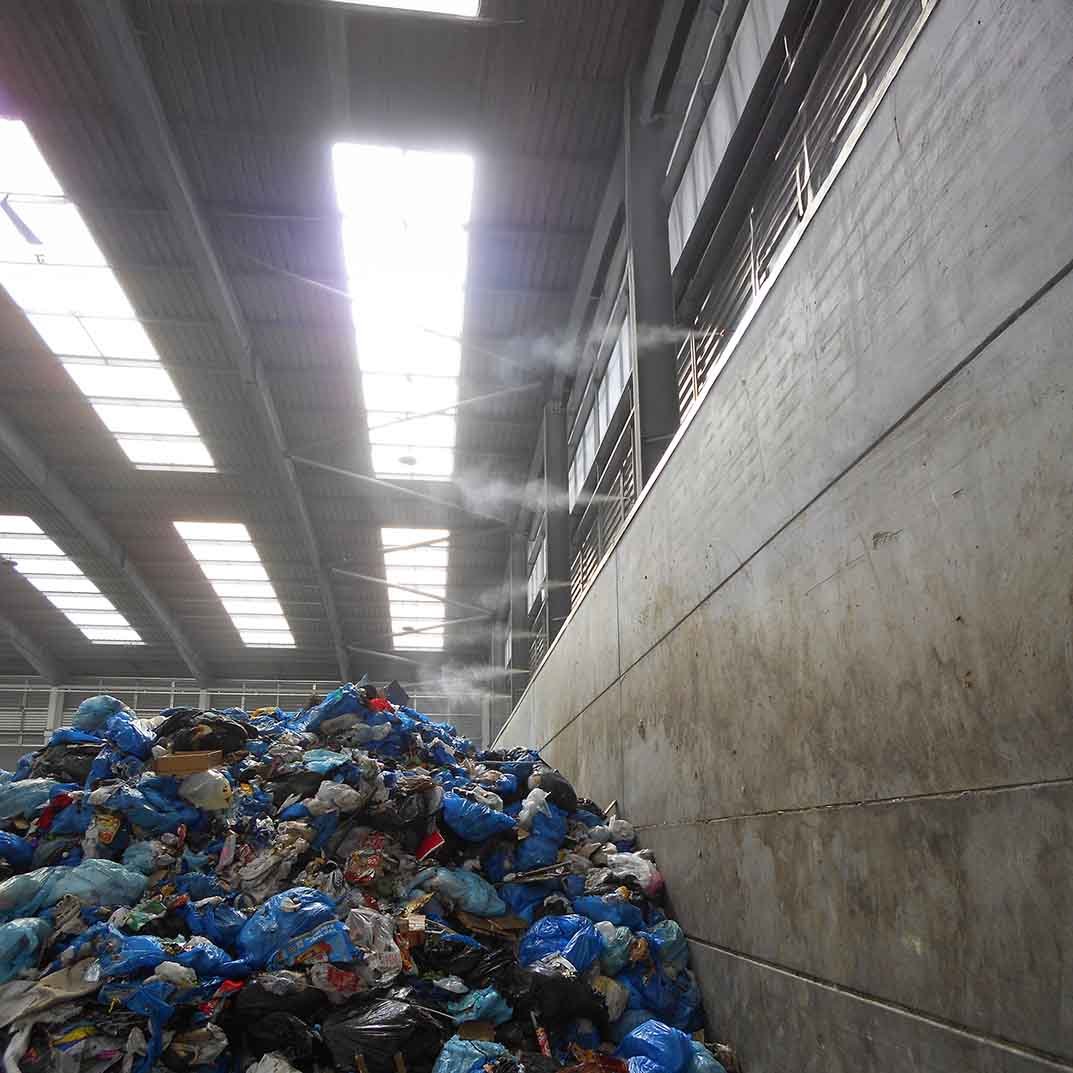

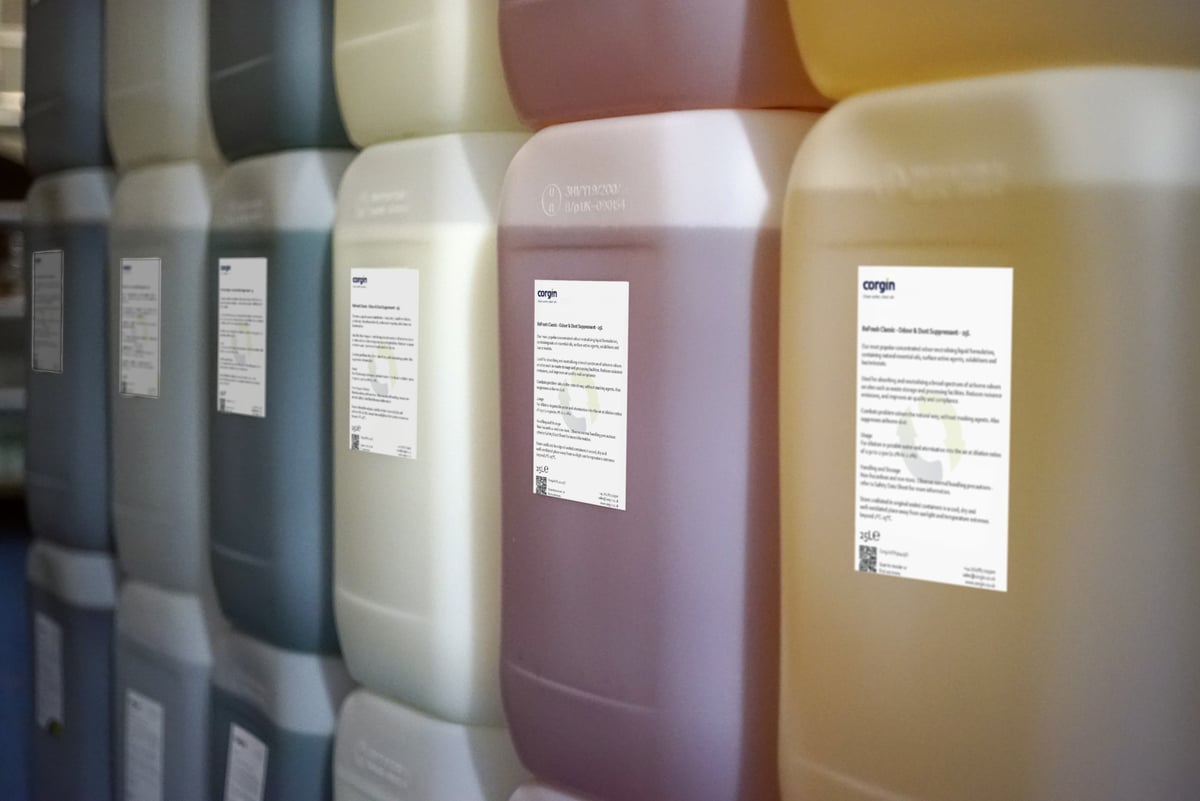

Automatic dilution of odour absorber/neutraliser concentrate |
For consistent dosing, helping to prevent wastage |
Two or more separate treatment channels |
To facilitate independent treatment of separate areas if required, and/or to prescribe different levels of intensity for each |
7-day timer control for each channel |
For flexible, unmanned operation if required |
Small integral break-tank |
To meet Category 4 water supply protection requirements |
Facility for automatic on/off control linked to another function, e.g. light switch, conveyor operation or wind vane |
For flexible, unmanned operation and optimum economy |
Hour meter to record system runtime |
For better monitoring of system operation |

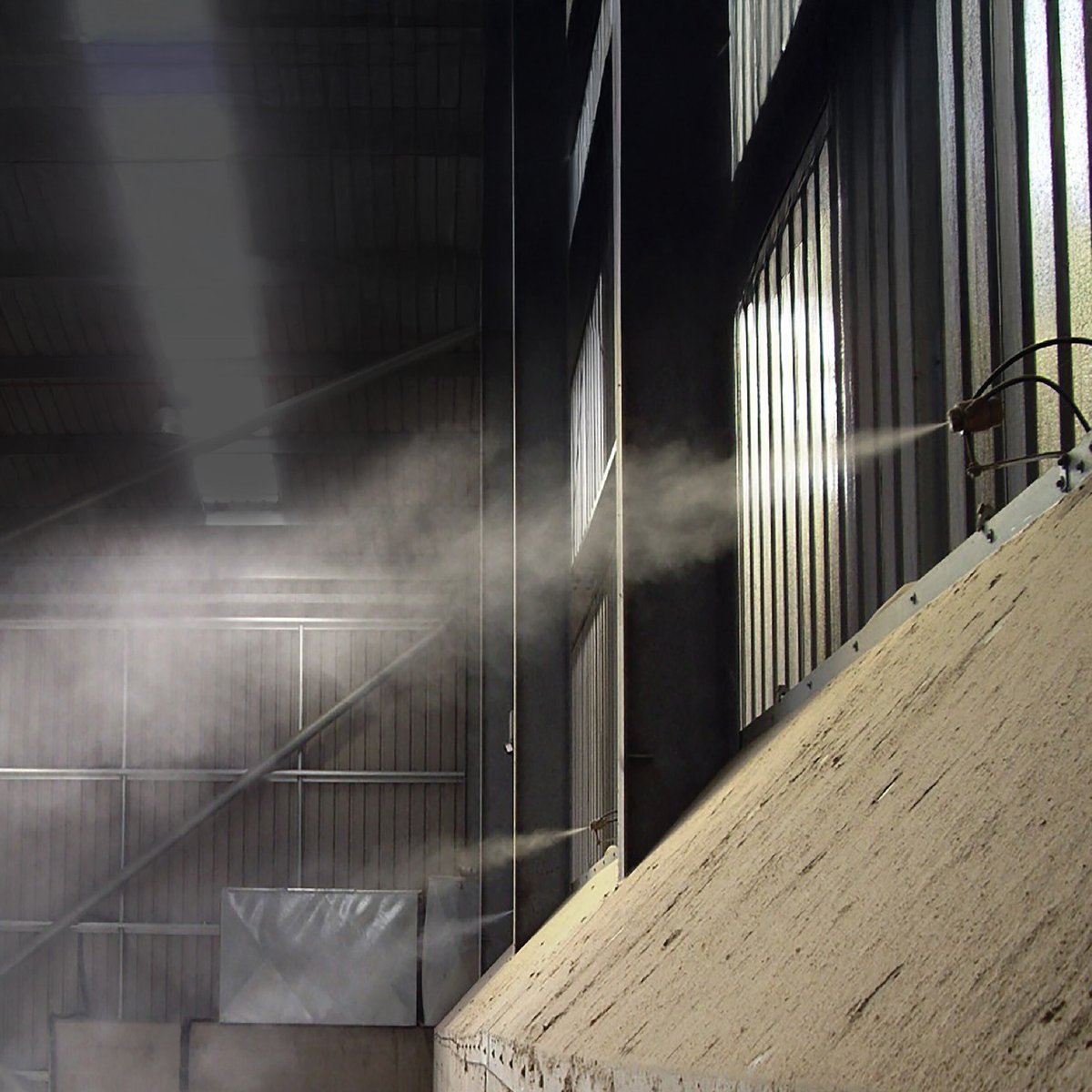

System purge feature |
For enhanced frost and legionella protection |
Optional wind vane |
For efficient operation based on wind direction |
Optional control box heater and thermostatic purge function |
Both offer significantly enhanced frost protection |
Optional rotary vane compressor |
For dedicated compressed air supply |
AtomiserAiro Eco |
Manually-operated control box; pumped water supply; air and water pressure regulation; 316 stainless steel atomisers; automatic dilution of odour neutraliser concentrate |

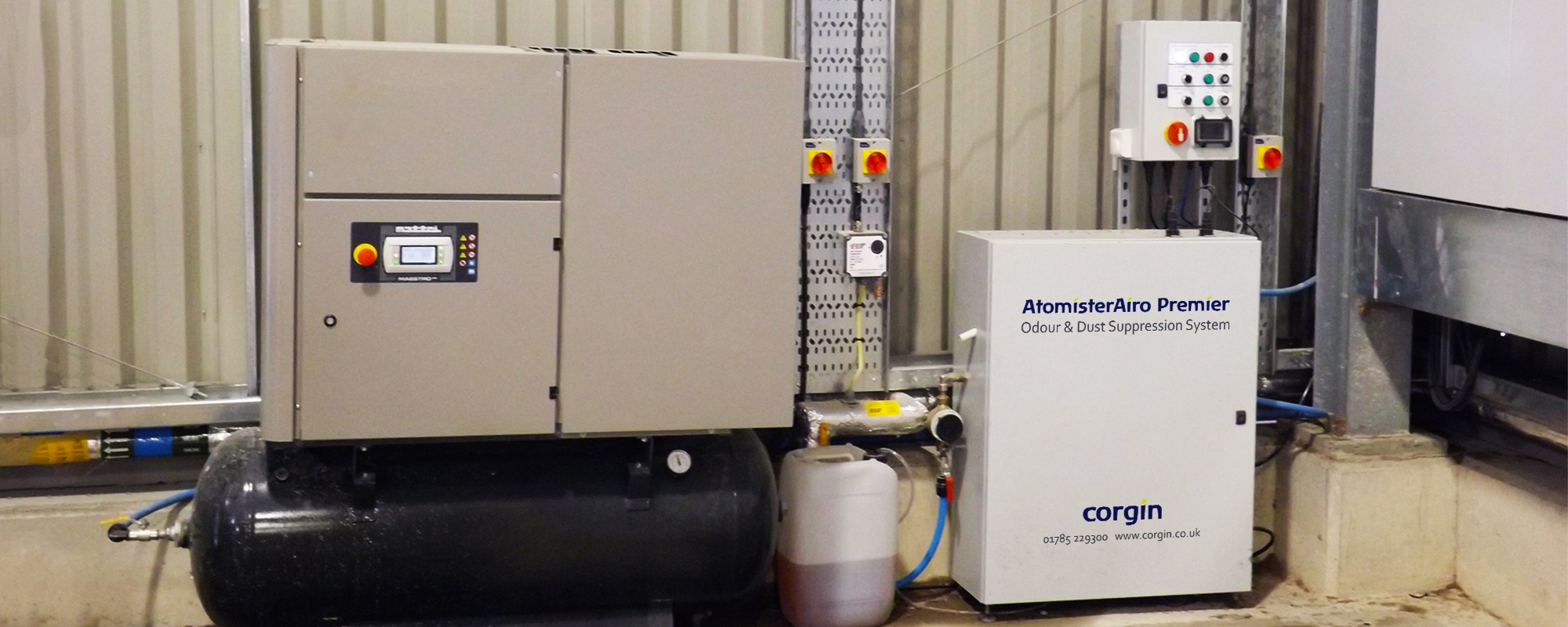

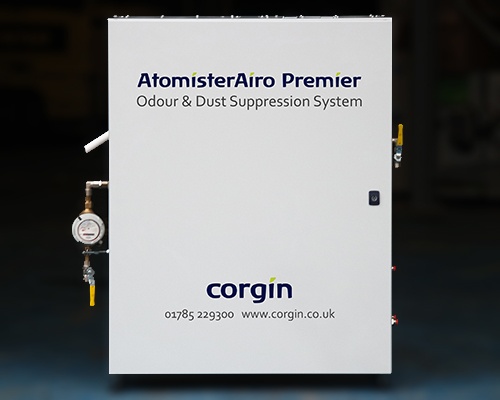

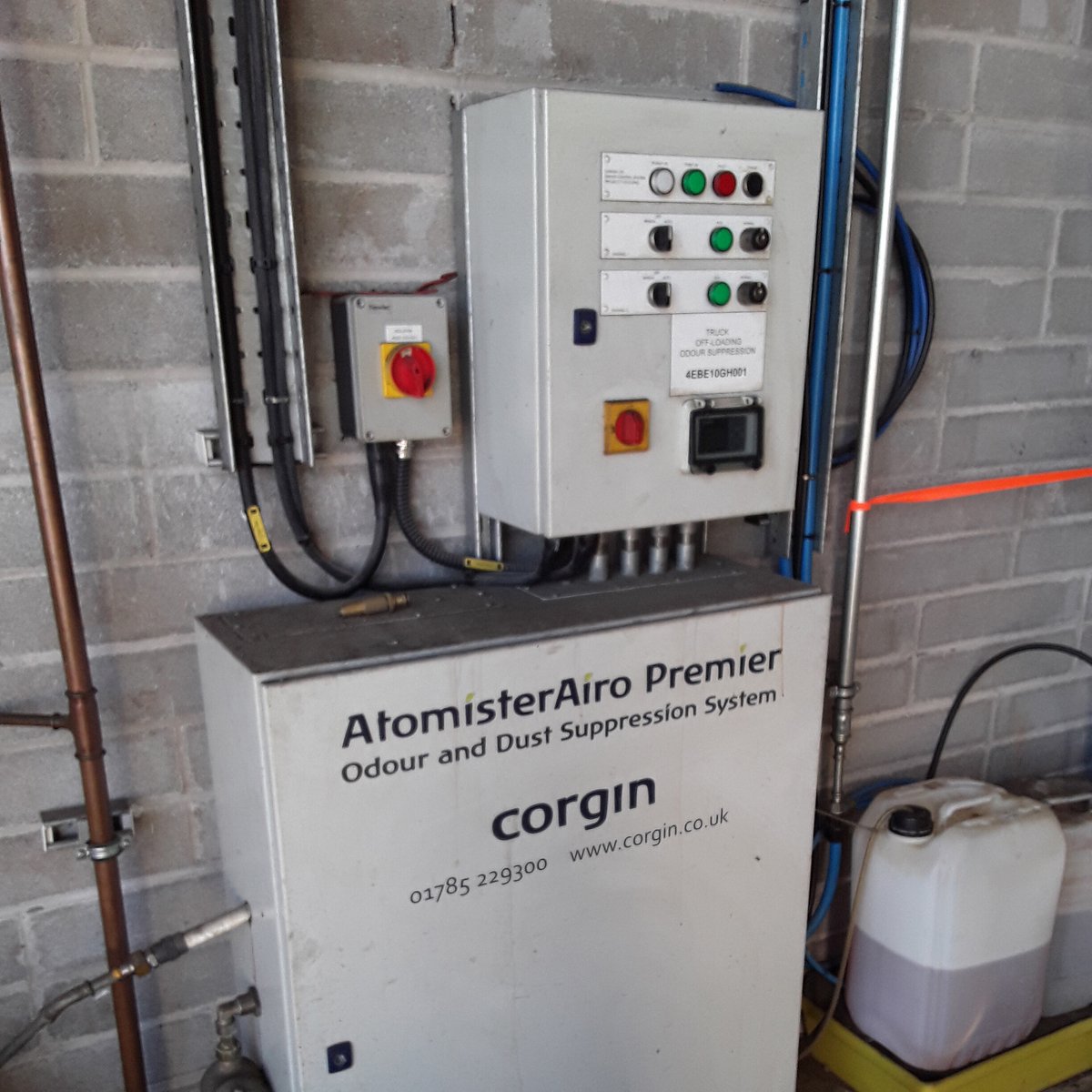

AtomisterAiro Premier |
All of the above, plus: 2 separate channels; |
Where is AtomisterAiro used? |

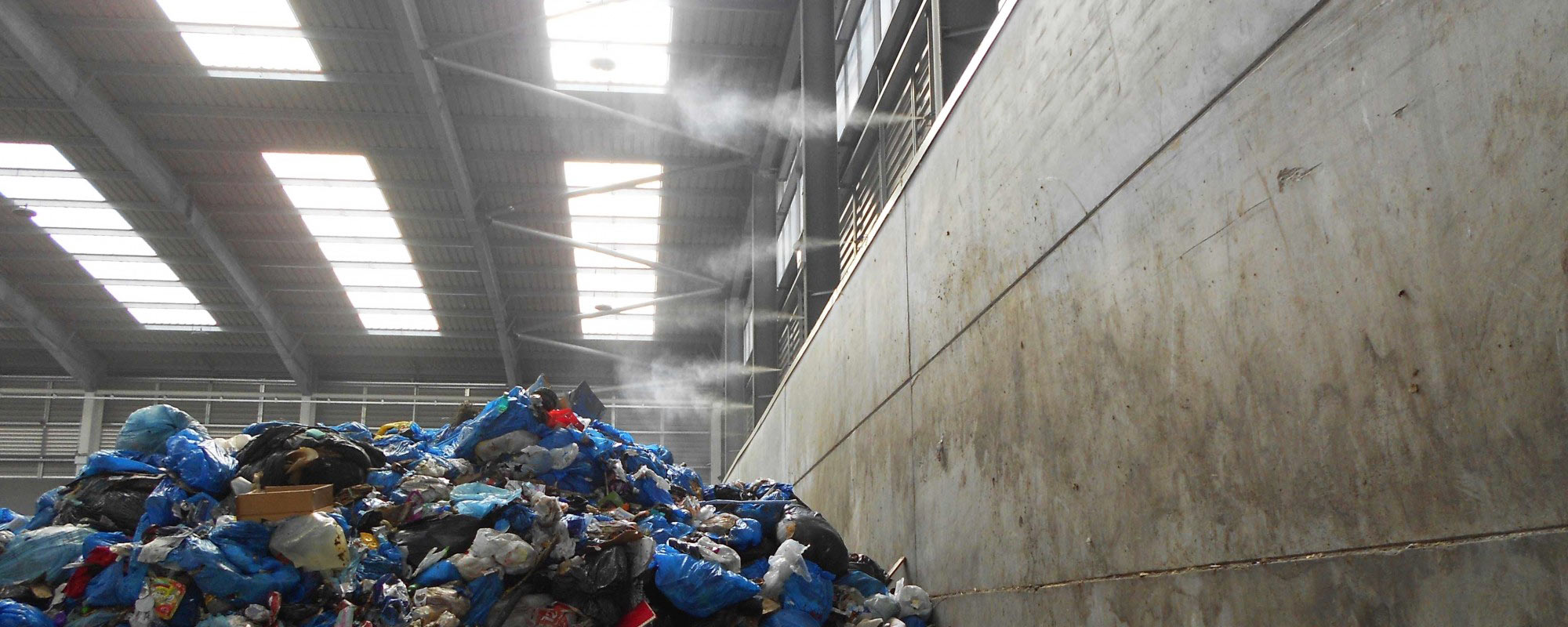

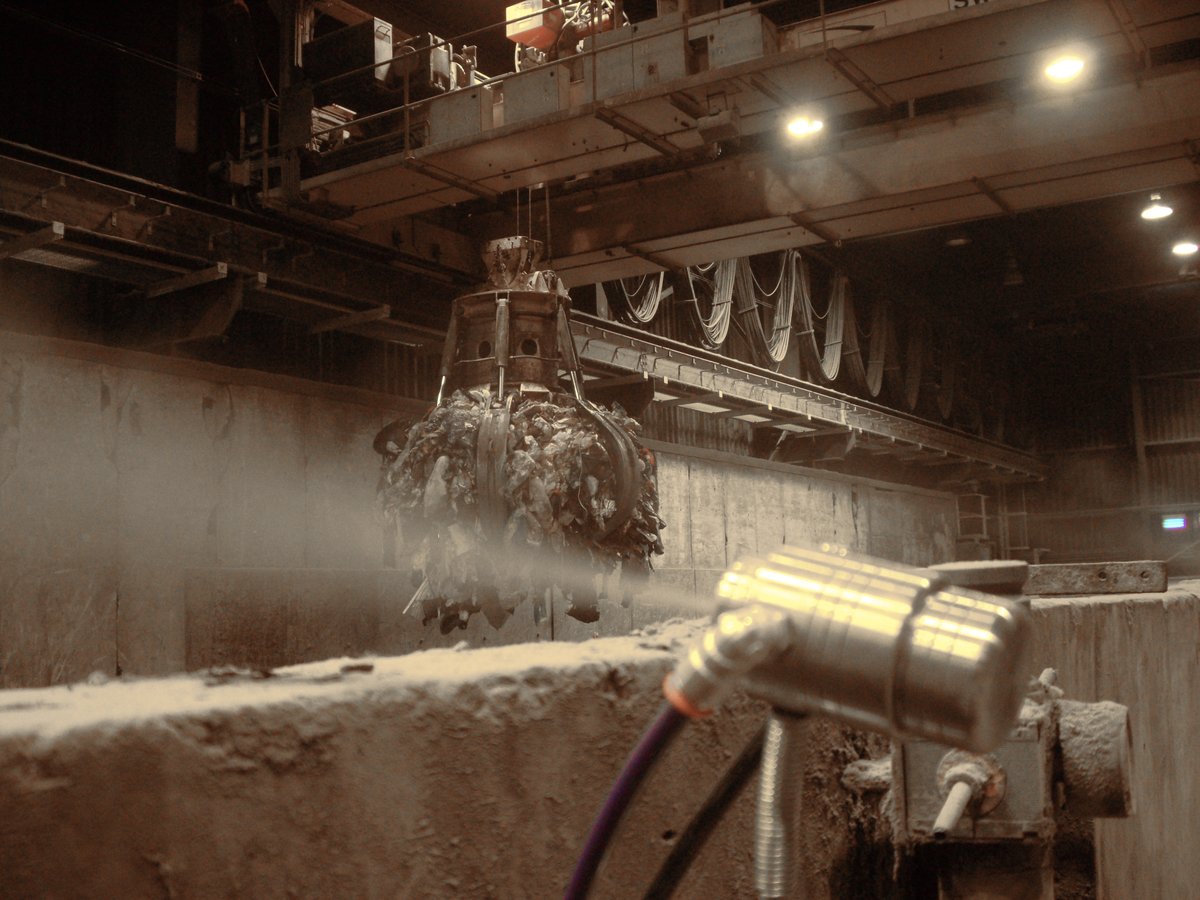

Waste Transfer Stations (WTS) |
Energy from Waste facilities (EFW) |
Material Recycling Facilities (MRF) |
Landfill sites |
Composting facilities |
Land remediation |

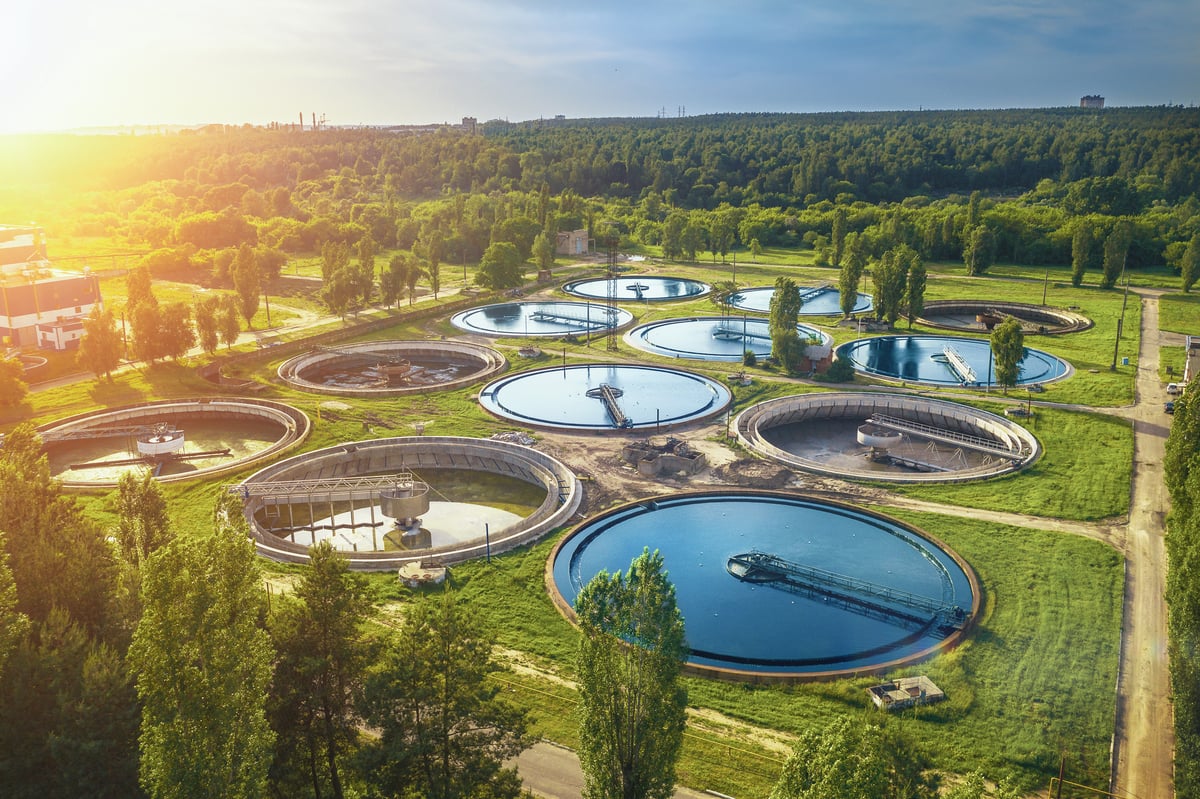

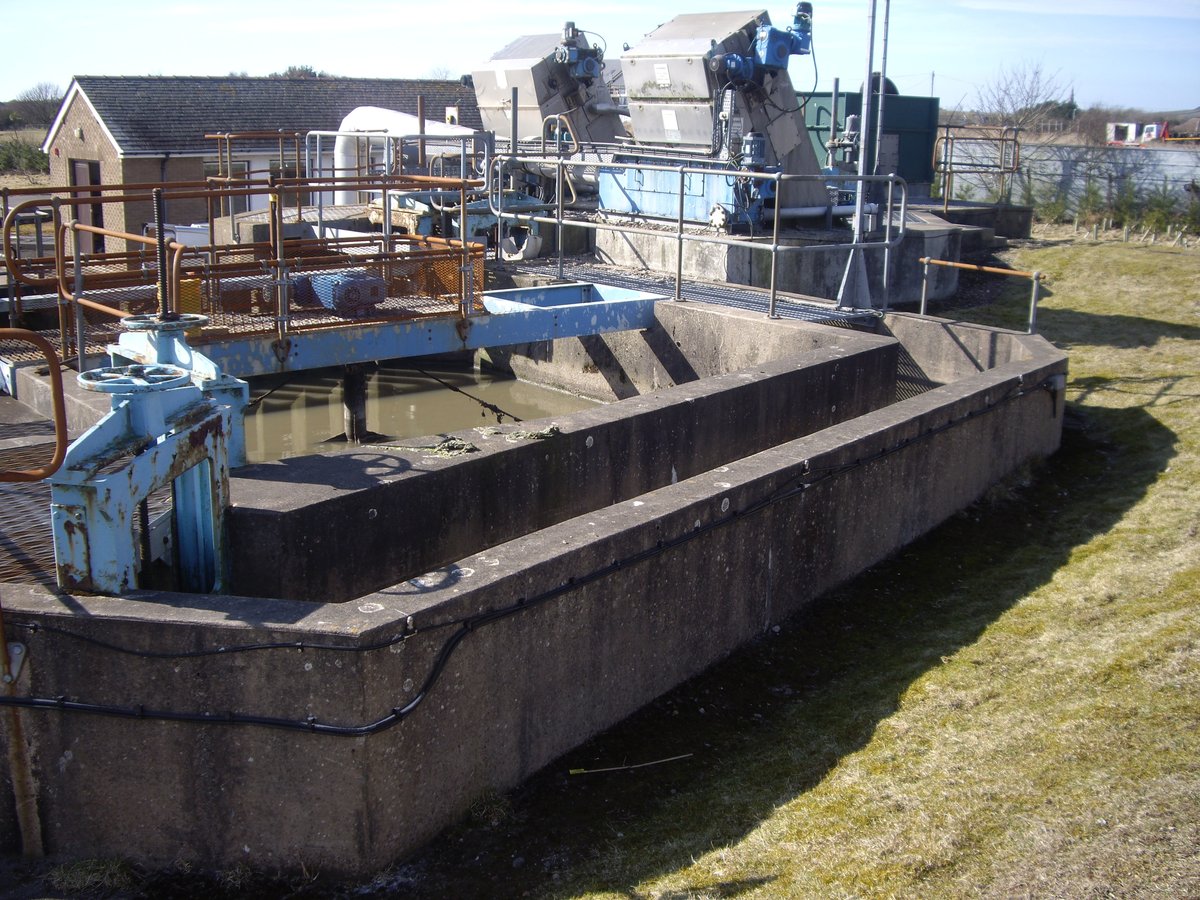

Sewage works |
Pump stations |
Ventilation and extraction stacks and louvres |
Industrial processes |
Aggregate handling |
Any process where it is essential that equipment or products are kept dry |
Why is it selected? |
Lowest Whole Life Cost (Totex) |
Lower water and consumable usage |
‘Dry’, non-wetting spray reduces |
Spray remains airborne longer giving better contact time for best results |
